CAE65 TAURUS BUILDING REPEATER PACKAGE

System gain greater than 75dB!

For Buildings up to 3000 Square Meters

Great for large homes, small offices and warehouses.

When greater areas require coverage, the CAE65 (32 times more powerful than the CAE50) and 15m of LMR400 cabling instead of RG8X.

Compact size and easy installation

!!!NEW!!! £819 + VAT + Shipping

COMES WITH ALL YOU NEED

CAE65 GSM 900 Package		System gain greater than 75dB USHR-900H High gain Bi-Directional Amplifier External Yagi Antenna Indoor panel antenna 15 m LMR400 cable Power supply	£819 + VAT + Shipping
CAE65 GSM 1800 Package		System gain greater than 75dB USHR-1800H High gain Bi-Directional Amplifier External Panel Antenna Indoor panel antenna 15 m LMR400 cable Power supply	£819 + VAT + Shipping

OPTIONAL EQUIPMENT

CA300-NLP-SMA		CA300-NLP-SMA Surge Filter/ Lightning Protector for CAE65 Best for RF Performance indoor - outdoor use single strike economical lightning protector. Can handle 300 watts of transmission power. Covers 0 - 6 GHz range. Gives protection against a 20kA surge	£32.95 + VAT + Shipping
CA-MAST		Universal J-Pipe mount used for mounting our roof mount Yagi and Panel aerials. Can also be used to integrate with our repeater systems. This mount is designed to fit on the side of a house. Either end of the mast can be attached to the base, depending on how much clearance is required for the aerial. Dimensions - 60 x 15 x 15 cm	£25.95 + VAT + Shipping

For areas greater than 3000 square meters and when there are more than 10 people that have Mobile phones in the area you want to improve coverage, go to the CAE500 packages.

Having good Mobile phone signal coverage in your home or office is essential and the Taurus repeater systems can provide that. With only one Taurus system, you can prevent dropped calls or no calls from any Mobile phone provider.

With the CE approved amplifier, the Taurus Repeater system is designed to improve mobile reception for all types of service including Vodafone, O2, Orange and T-Mobile. This system is designed to improve the mobile signal in areas of 3000 sq. meters.

How does it work?

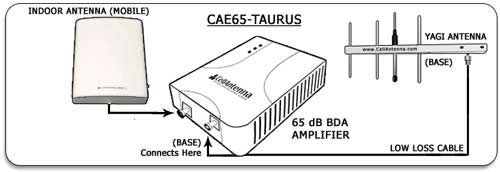

The Taurus Home Repeater takes the signal from an external antenna mounted outside a building, amplifies it and rebroadcasts it to the interior of the building with an indoor antenna. The same process occurs in the opposite direction taking the signal from the Mobile phone and sending it outside via the antenna and amplifier.

The Taurus contains components that are engineered specifically for Mobile phone signals. The amplifier is fully shielded in a metal case with no plastic components. This ensures that no electromagnetic waves escapes the case. The cabling is double shielded and our antennas are manufactured to our engineer's specifications.

Typical Installation Instructions
1. Install External Aerial on the Roof
2. Install Amplifier inside at a convenient location. Make sure 220V is available to connect the power transformer (do not power up)
3. Run cable from External Aerial to the Amplifier
4. Locate the Internal Aerial, install on ceiling (or wall) and connect cable from aerial to Amplifier.
5. Check all cables and power up amplifier
6. Rotate External Aerial until maximum signal strength on phone inside the building in the area covered by the internal aerial is achieved.
7. Securely Fasten External Aerial.

There are laws that govern the use of these products in various countries. We suggest referring to the governmental organization having jurisdiction. All CAE50 , CAE65 and CAE500 repeater products are offered in Europe through CellAntenna Corporation USA with shipping based on local charges.
