CAE-500-65 BUILDING REPEATER PACKAGES

System gain greater than 72dB!

For Buildings up to 3,000 Square Meters

This system is ideal for medium applications such as offices, homes, small factories or warehouses.

For all 900 or 1800 MHz Mobile Phone Carriers throughout Europe

High Gain Bi-Directional Amplifier

Wireless coverage

50+ USERS

CE Approved

From: £999
NOW: 969
+ VAT + Shipping

All CAE-500-65 Packages come with all you need to get the system working. Parts include:

CAE500-65 900MHz UK Repeater Packages

CAE500-65- 900-1 UK	Comes with: System gain greater than 72dB USHR-900H 900 MHz High Gain Bi-Directional Amplifier, 2 - 15 m cables with connectors, 7 dB Yagi outdoor aerial, 1 Ceiling Mount Omni Directional Indoor aerial	From £999 NOW: 969 + VAT + Shipping
CAE500-65- 900-2 UK	Comes with: System gain greater than 72dB USHR-900H 900 MHz High Gain Bi-Directional Amplifier, 3 - 15 m cables with connectors, 7 dB Yagi outdoor aerial, 2 way power divider, 2- Ceiling Mount Omni Directional Indoor aerial	£1169 + VAT + Shipping
CAE500-65- 900-3 UK	Comes with: System gain greater than 72dB USHR-900H 900 MHz High Gain Bi-Directional Amplifier, 4 - 15 m cables with connectors, 7 dB Yagi outdoor aerial, 3 way power divider, 3- Ceiling Mount Omni Directional Indoor aerial	£ 1299 NOW: 1269 + VAT + Shipping
CAE500-65- 900-4 UK	Comes with: System gain greater than 72dB USHR-900H 900 MHz High Gain Bi-Directional Amplifier, 5 - 15 m cables with connectors, 7 dB Yagi outdoor aerial, 4 way power divider, 4- Ceiling Mount Omni Directional Indoor aerial	£1369 + VAT + Shipping

CAE500-65 1800MHz UK Repeater Packages

CAE500-65- 1800-1 UK	Comes with: System gain greater than 75dB USHR-1800H 1800 MHz High Gain Bi-Directional Amplifier, 2 15 m cables with connectors, 11 dB Panel outdoor aerial, 1 Ceiling Mount Omni Directional Indoor aerial	From £999 NOW: 969 + VAT + Shipping
CAE500-65- 1800-2 UK	Comes with: System gain greater than 75dB USHR-1800H 1800 MHz High Gain Bi-Directional Amplifier, 3 - 15 m cables with connectors, 11 dB Panel aerial, 2 way power divider, 2- Ceiling Mount Omni Directional Indoor aerial	£1169 + VAT + Shipping
CAE500-65- 1800-3 UK	Comes with: System gain greater than 75dB USHR-1800H 1800 MHz High Gain Bi-Directional Amplifier, 4 - 15 m cables with connectors, 11 dB Panel outdoor aerial, 3 way power divider, 3 - Ceiling Mount Omni Directional Indoor aerial	£ 1299 NOW: 1269 + VAT + Shipping
CAE500-65- 1800-4 UK	Comes with: System gain greater than 75dB USHR-1800H 1800 MHz High Gain Bi-Directional Amplifier, 5 - 15 m cables with connectors, 11 dB Panel outdoor aerial, 4 way power divider, 4 - Ceiling Mount Omni Directional Indoor aerial	£1369 + VAT + Shipping

OPTIONAL EQUIPMENT

CA300-NLP		CA300-NLP Surge Filter/ Lightning Protector for CAE-500-65. Best for RF Performance indoor - outdoor use single strike economical lightning protector. Can handle 300 watts of transmission power. Protection against a 20kA surge.	£32.95 + VAT + Shipping
CA-MAST		Universal J-Pipe mount used for mounting our roof mount Yagi and Panel aerials. Can also be used to integrate with our repeater systems. This mount is designed to fit on the side of a house. Either end of the mast can be attached to the base, depending on how much clearance is required for the aerial. Dimensions - 60 x 15 x 15 cm	£25.95 + VAT + Shipping

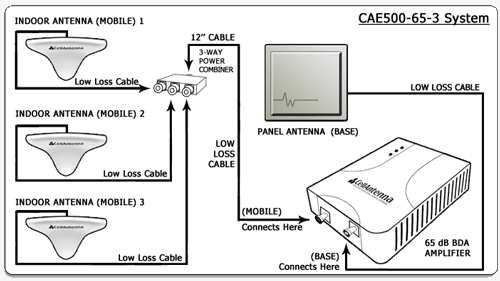

Connect the system together as follows: (CAE500-65-1800-3 shown below)

Typical Installation Instructions
1. Install External Aerial on the Roof
2. Install Amplifier inside at convenient location. Make sure 220V available to connect power transformer (do not power up)
3. Run cable from External Aerial to the Amplifier
4. Locate the Internal Aerials install on ceiling (or wall) and connect cable from aerials to Amplifier.
6. Check all cables and power up amplifier
7. Rotate External Aerial until maximum signal strength on phone inside the building in the area covered by the internal aerials is achieved.
8. Securely Fasten External Aerial.

There are laws that govern the use of these products in various countries. We suggest referring to the governmental organization having jurisdiction. All CAE50 and CAE500 repeater products are offered in Europe through CellAntenna Corporation USA with shipping based on local charges.
